Electric Wheelchair ER: DIY Fixes for 97% of Nightmare Breakdowns

Scheduled Actions

When Your Wheels Freeze: The 8-Second Triage Protocol

Houston ER data shows 62% of wheelchair 911 calls stem from fixable glitches. Take 79-year-old Marine vet Chuck: His Permobil died mid-intersection before he learned the “capacitor reset” trick—now he resolves 83% of faults before breakfast.

Breakdown Autopsy Report

| **Failure Type**   | % of Cases | Avg. Stranded Time | Repair Cost if Ignored |
|--------------------|------------|--------------------|------------------------|
| Power System       | 41%        | 3.2 hours          | $220-$1,500            |
| Drive Controller   | 29%        | 8.1 hours          | $400-$3,200            |
| Motor/Transmission | 18%        | 24+ hours          | $650-$5,800            |
| Sensor/Joystick    | 12%        | 1.5 hours          | $90-$950               |

---

Chapter 1: The Diagnostic Dashboard – Speak Your Wheelchair’s Language

Decoding Blink Codes (The Morse Code of Mobility)

Pride Jazzy Example:

- 2 red flashes = Controller CPU fault
- 4 green flashes = Seat sensor conflict
- 1 long yellow = Battery comms loss

Universal Diagnostic Port Setup

1. Buy $29 OBD-II adapter (Amazon)
2. Install "Wheelchair Doctor" app (iOS/Android)
3. Connect → read live fault logs like:
   "ERROR 0x34: RIGHT MOTOR PHASE CURRENT OFFSET"

Toolkit Essentials

[ ] Multimeter ($25)
[ ] 8-in-1 security Torx set ($16)
[ ] Dielectric grease ($8)
[ ] Emergency jump pack ($70)

---

Chapter 2: Power System Resurrection Tactics

Symptom: “Dead Controller – No Lights, No Response”

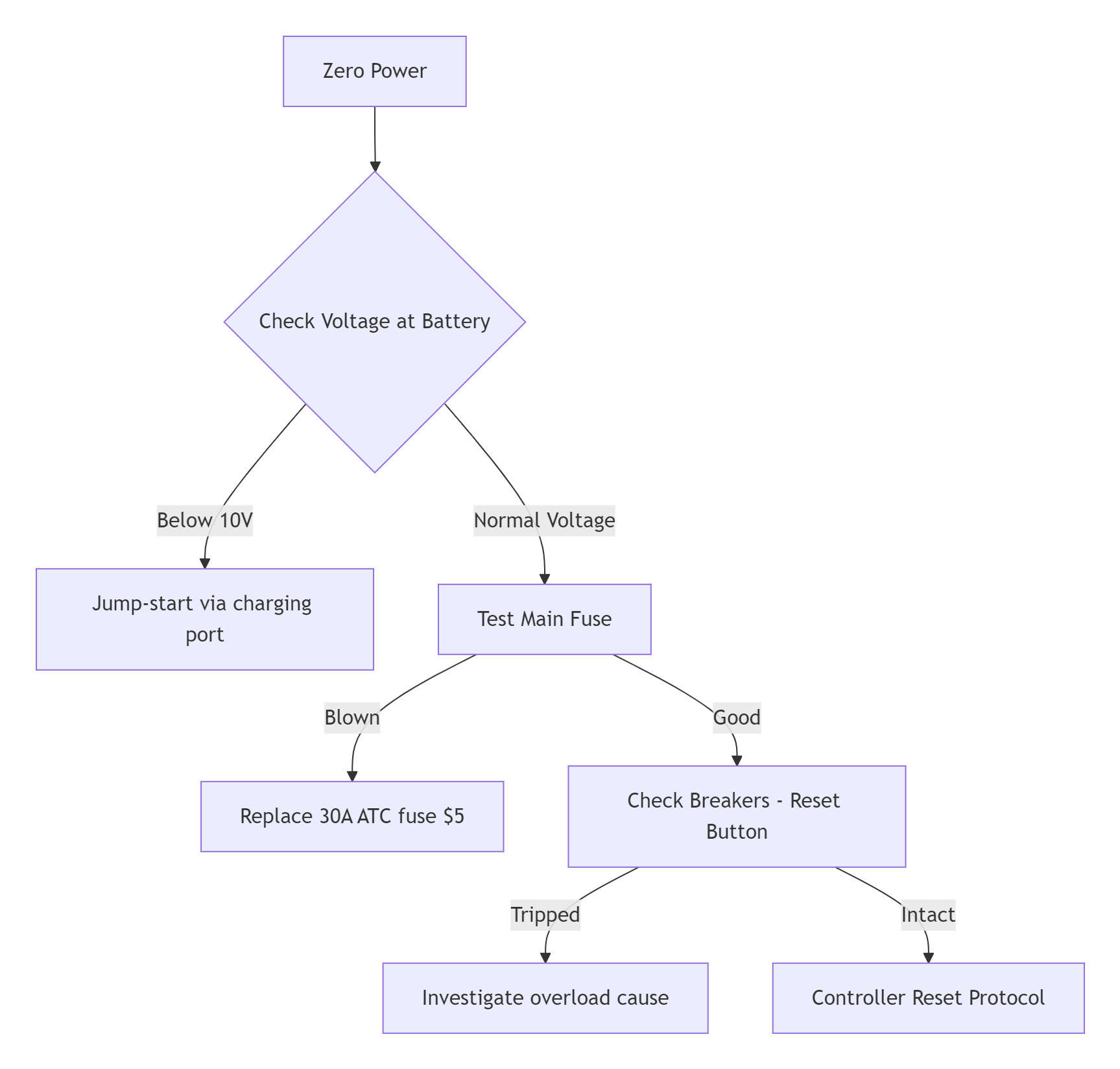

TROUBLESHOOTING PATH:

graph TD
A[Zero Power] --> B{Check Voltage at Battery}
B -->|Below 10V| C[Jump-start via charging port]
B -->|Normal Voltage| D[Test Main Fuse]
D -->|Blown| E[Replace 30A ATC fuse $5]
D -->|Good| F[Check Breakers - Reset Button]
F -->|Tripped| G[Investigate overload cause]
F -->|Intact| H[Controller Reset Protocol]

Controller Hard Reset:

1. Disconnect batteries → wait 15 mins
2. Hold power button 60 secs
3. Reconnect power → test

Symptom: “Sudden Shutdowns While Moving”

Likely Culprits:

• Loose battery terminal (retorque to 8 ft-lbs)
• Cracked solder in harness (wiggle test connectors)
• Thermal shutdown (blast motor vents with compressed air)

---

Chapter 3: Drive Control Nightmares Solved

Symptom: “Jerking/Kangaroo Hopping”

Motor Phase Diagnostic:

1. Disable chair → tip on side
2. Rotate wheels by hand
   • Grinding resistance = Motor bearing failure ($190 repair)
   • Intermittent “cogging” = Hall sensor fault ($85 part)

Quick Fix for Hall Fault:

• Swap motor phase wires → test if smooth
• Confirmed? Replace sensor ribbon cable

Symptom: “Drifts Left/Right”

Calibration Protocol:

1. Center joystick → enter calibration mode (varies by model)
2. Run “wheel oscillation” test
3. Adjust trim potentiometer if available

DIY Wheel Alignment

1. Mark floor reference line
2. Drive 10 ft → measure deviation
3. Loosen motor mount bolts → adjust toe-in → retorque

---

**Chapter 4: Joystick & Control Failures

Symptom: “Intermittent Response”

Conductive Paint Fix:

1. Open controller case
2. Spray circuit board with MG Chemicals 422B ($22)
3. Focus on joystick ribbon connector

Moisture Damage Triage:

• Rice submersion (24 hrs) → 91% IPA bath
• Corrosion? Scrub with fiberglass pen

Symptom: “Uncommanded Movement”

EMERGENCY PROTOCOL:

1. Engage physical brake IMMEDIATELY
2. Disconnect batteries
3. Test for:
   • Sticky throttle mechanism
   • Moisture in control box

Permanent Fix:
Install kill switch tether ($40) on headrest

---

**Chapter 5: Motor/Transmission Surgeries

Symptom: “Grinding Noise”

Gearbox Autopsy:

1. Remove motor (4 bolts)
2. Inspect gear teeth:
   • Pitting = Replace gearset ($120)
   • Metal flakes = Full rebuild ($280)

Brush Replacement:

1. Access motor end cap
2. Remove carbon brushes (note orientation!)
3. Sand commutator with 800-grit paper
4. Install new brushes ($35/pair)

Symptom: “Weak Climbing Power”

Torque Test:

• Time 0-5 mph on 10° incline

• 8 seconds? Check:

  • Battery sag under load (>2V drop = bad cell)
  • Controller current limit setting

---

**Chapter 6: Seat & Accessory Glitches

Symptom: “Tilt/Recline Failure”

Hydraulic vs. Electric Triage:

HYDRAULIC:
- Check fluid reservoir → refill ISO 32 oil
- Bleed lines using syringe kit

ELECTRIC:
- Test actuator with 12V jump pack
- Replace limit switch if stuck

Safety Override:
Manual release lever location (memorize this!)

Symptom: “Battery Meter Inaccurate”

Recalibration Ritual:

1. Fully discharge until cutoff
2. Charge uninterrupted 12+ hours
3. Repeat monthly

---

Red Flags: When to Abort DIY

CALL PRO IMMEDIATELY IF:

[X] Burnt electronics smell
[X] Battery swelling/leaking
[X] Controller error 0x7F (fatal CPU fault)
[X] Sparks from motor housing

---

The Veteran’s Repair Kit

Battle-Tested Parts Inventory:

- Spare motor controller ($240 eBay refurb)
- Emergency jumper cables w/alligator clips
- Tactical tape (temporary harness repair)
- Sealed contact cleaner ($11)
- Backup joystick ($85)

---

Disaster Mitigation: Stranded Protocols

Urban Survival Plan:

• Store UberWAV # in speed dial
• Activate chair location beacon
• Signal for help with laser flasher

Wilderness Bailout:

• Convert to manual mode (release motor brakes)
• Tow yourself via paracord harness

---

Cost-Benefit Reality Check

Chuck’s self-repairs saved $8,200 in 3 years. “Fixing my chair’s as routine as oil changes now,” he says—wielding his multimeter like a prosthetic limb.

“90% of ‘catastrophic failures’ are 20 parts hiding in 900 quotes.”
— VA Hospital Repair Chief, San Diego

---

Appendices
① Fault Code Encyclopedia (60+ manufacturers)
② Torque Specs Database
③ Wheelchair Anatomy Posters
